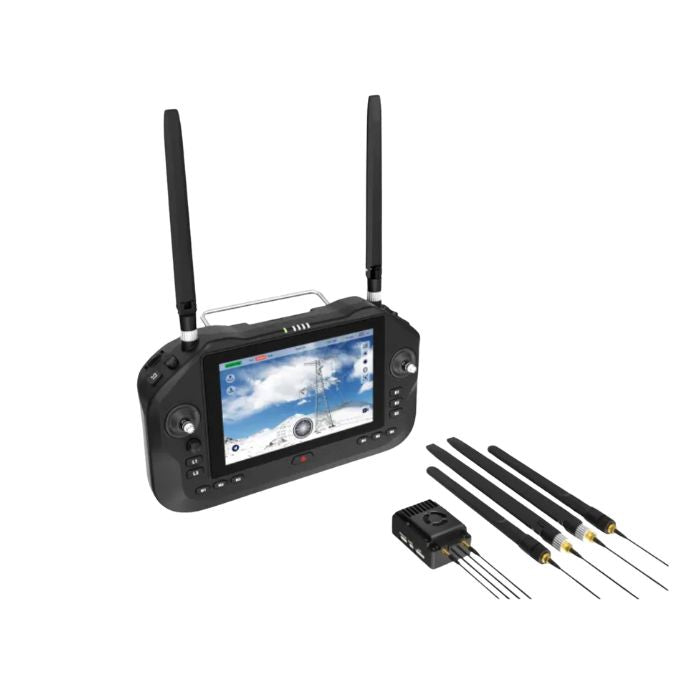

SIYI UniRC 7 Pro (2.4 & 5 GHz)
Specifications
| Maximum Effective Signal Range |
Agriculture Spraying Altitude (3 to 6 m):3 to 6 km Rural Area Flight Altitude (120 m), Few Obstruction & Medium Interference:10 to 15 km Above Sea Flight Altitude (150 m), No Obstruction & Low Interference:30 to 40 km |
| Working Frequency |
UniRC 7 Pro: 2.400 GHz - 2.476 GHz |
| Physical Channels |
10 x Custom Buttons 6 x Flight Mode Buttons 2 x Main Joysticks 1 x Sub Joystick 2 x Dials 2 x 3-Stage Switches |
| Monitor |
7-inch 1080p 1600-nit High Definition and High Brightness LCD Touchscreen UniRC 7 Pro: 1920×1200 |
| Operating System |
Android 13 |
| Android Hardware |
4GB RAM+ 64GB ROM |
| Wi-Fi |
Wi-Fi 5 |
| Bluetooth |
BT 5.0 |
| GNSS |
GPS/GLONASS/BeiDou/Galileo/QZSS |
| Battery Life |
UniRC 7 Pro: Approx 8 hours |
| Battery Capacity |
13400mAh |
| Charging Protocol |
PD 30W |
| Charging Time |
Approx 4.5 hours |
| Datalink/SDK Port |
UART/UDP、Bluetooth、Type-C |
| Interfaces |
UniRC 7 Pro: External Device (Mouse, USB Disk, USB Microphone): USB-A Serial Port (for RTK Dotting Module): USB-A File Transfer: USB-A Video Output: Standard HDMI Network Communication: LAN (GH1.25 4-Pin) |
| Antennas |
UniRC 7 Pro: 2 x Internal (5 GHz)+2 x External (2.4 GHz) |
| Protection Class |
IP54 |
| Dimensions |
L274 * W190 * H100 mm |
| Weight |
UniRC 7 Pro: 1.46KG |
| RC Signal Output |
16-channel S.Bus 5-channel PWM |
| Interfaces |
RC Signal Output: S.Bus (GH1.25 2-Pin) RC Signal Output: PWM 1 to 5 (GH1.25 6-Pin) Datalink: 2 x UART (GH1.25 3-Pin) Video & Data: 2 x LAN (GH1.25 8-Pin) Power Supply: XT30 Firmware Upgrade: Type-C |
| Antennas |
UniRC 7 Pro: 2 x Quick-Release MMCX (5 GHz) 2 x Detachable IPEX (2.4 GHz) |
| Working Voltage |
12 to 76 V |
| Dimensions (antenna excluded) |
UniRC 7 Pro: L63 * W40 * H27 mm |
| Weight (antenna excluded) |
UniRC 7 Pro: 115g |
| Average Power Consumption |
UniRC 7 Pro: 8W |
