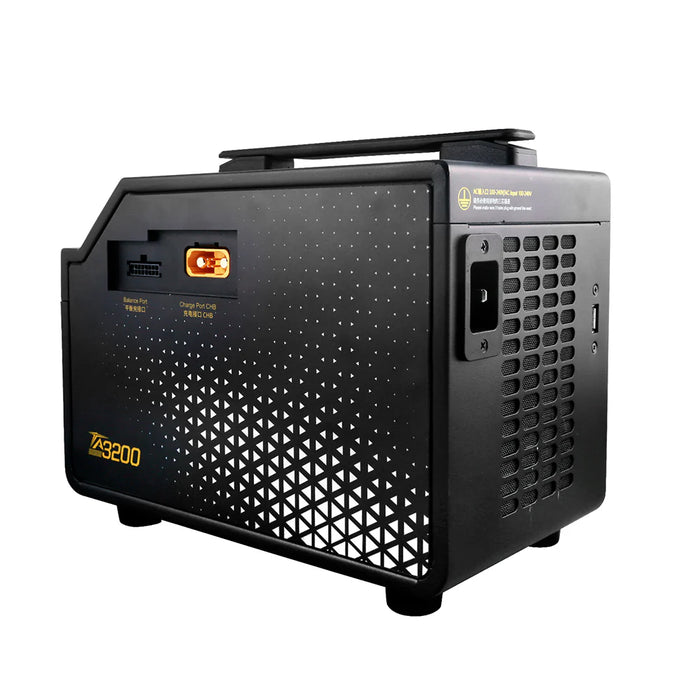

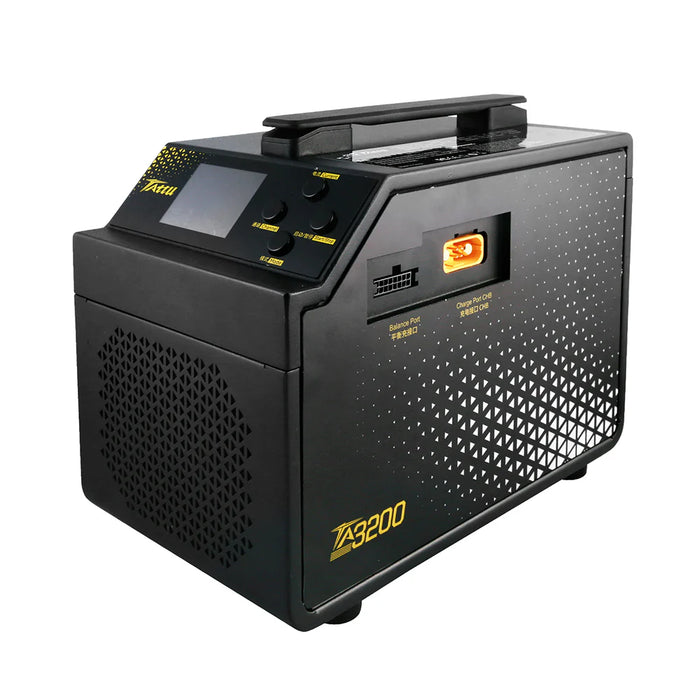

Tattu TA3200 Dual-channel Smart Charger for 6S-14S LiPo Battery
The all new TA3200 is Tattu’s latest member in its premium intelligent Smart charger line; able to charge safely and conveniently Tattu/GensAce Smart batteries like our TATTU Plus 1.0 16000mAh Compact Smart Battery; as well any other soft pack models ranging from 6S to 14S.
The TA3200 charger features 2 powerful charge channels with its maximum power reaching up to 3200W/60A and recognizes batteries equipped with the DroneCAN protocol standard; therefore keeping primarily safety as well smooth and simple operation as priority.
Additionally; 3 performance optimized charge modes can be activated: fast charging mode; normal charging mode and storage mode for standard LiPo style batteries as well HV battery technology. In normal soft pack operation charge mode; there are three charging current choices 6A; 16A and 32A with 220V input or 10A;16A; 22A with 110V input.
Specifications
- Models: TA3200
- AC Input: 100-240V
- Max Output Power: AC100-110V 1200W; 220-240 3200W
- Charge Current: Up to 60A
- Size: Approximately 276x154x216mm
- Weight: Approximately 6000g
- Suited for battery type: non-smart LiPo (4.20V) batteries and Tattu smart battery. For 6S-10S Lipo battery with JST-XHR balancer, a balance board(TAA005) is required for charging (not included in TA3200 / TA3200UK / TA3200HV / TA3200UHV).
In all modes; while charging you can safely rely on the ability to follow real time parameters on the large LCD display like:
- Battery State of Charge Percentage
- Current Status of Charge
- Battery Voltage
- Cell Voltage Differences
- Charging Current
To increase the charger and battery its operational efficiency and cycle life reliability we have added several smart features:
- Powerful internal fan to keep operational temperatures under total control
- Smart charge software algorithms to improve battery efficiency and therefore cycle life
- Sturdy protective durable hard case to protect it from shocks and intensive usage
- High duty gold plated internal charge connectors with dust protection covers
- Convenient Carry-on handle for comfort placement and transport
- USB port allows for the latest software updates
- Multi-lingual instruction manual with detailed information and excellent after-sales service
