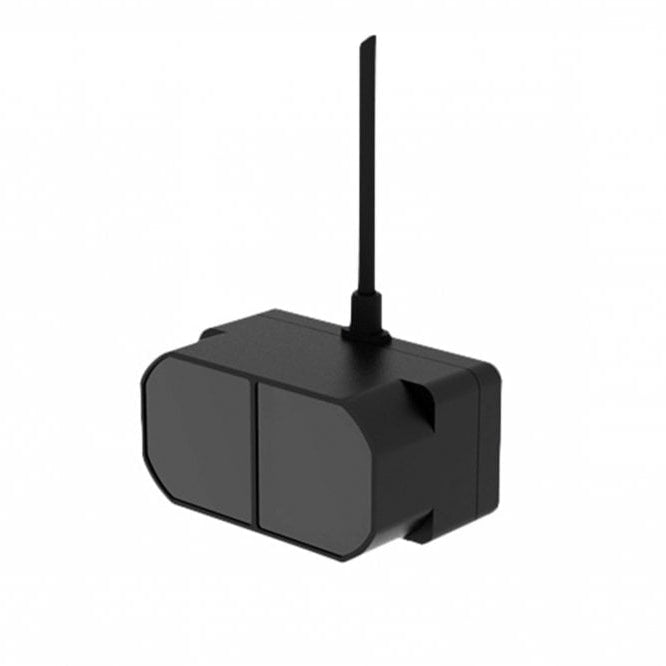

Benewake - TFmini Plus LiDAR - IP65 - 12m range
- Please see 'Downloads' section for the product's Datasheet and Manual.
- For software see Benewake website here.
TFmini Plus, based on TFmini, is a single-point short-range LiDAR. Inherited low cost, small size and low power consumption from TFmini, TFmini Plus has greatly improved its performance — increasing the measurement frequency, reducing blind zone and improving accuracy. Meanwhile, TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which will greatly expand its application fields and scenarios.
Small yet powerful
Inherited TFmini's design concept – 'Small Yet Powerful', TFmini Plus, as large as a man's thumb, has greatly improved the performance. Frame rate can reach 1000Hz. Blind zone narrows down to 10cm. And the average STD within 4m is small than 2cm.
Safe & Stable
Distinguished from TFmini — Open form module, TFmini Plus has been designed with IP65 enclosures, and also passed the vibration test of drone level, which will greatly expand its application range. To improve applicability, TFmini Plus also support Pix, UART and I2C output format.
Performance Parameters
| Operating Range | 0.1m~12m |
| Blind Zone | 10cm |
| Distance Resolution | 5mm |
| Accuracy | ±5cm@(0.1-6m);±1%@(6m-12m) |
| Frame Rate | 1~1000Hz（adjustble） |
| Ambient Light Immunity | 70klux |
Optical Parameters
| Central Wavelength | 850nm |
| FOV | 3.6° |
Ambient Data
| Storage Temperature | -20℃~75℃ |
| Enclosure Rating | IP65 |
Mechanical/Electrical Parameters
| Supply Voltage | 5V±0.5V |
| Average Current | ≤110mA |
| Dimension | 35mm*21mm*18.5mm（length*width*height） |
| Weight |
