T-motor Antigravity MN1005 motors

Sold out
Original price R 4,999.00 - Original price R 4,999.00
Original price
R 4,999.00
R 4,999.00 - R 4,999.00
Current price R 4,999.00

Only 0 in stock.

Add to Wishlist

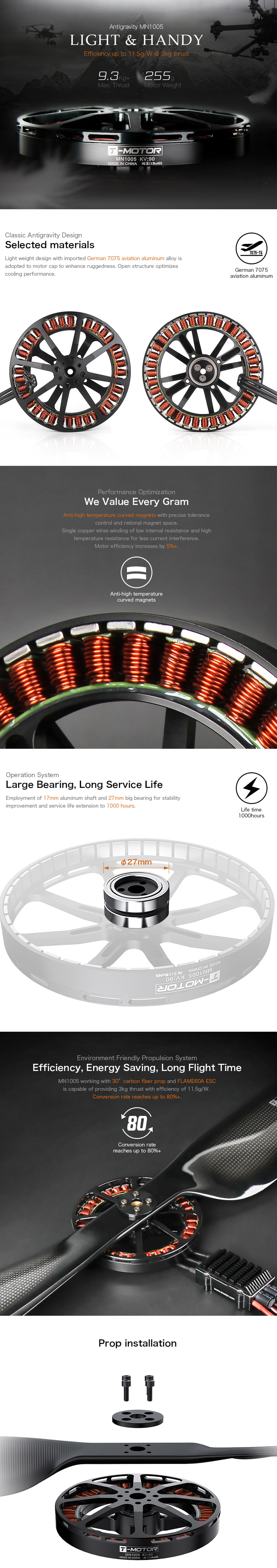

The Tiger Motor MN1005 is another exceptional motor in the Antigravity series. The Antigravity MN1005 90kv Motor features light-weight design with imported German 7075 aviation aluminum alloy, which is adapted to the motor cap to enhance ruggedness. It comes with an open structure to help optimize cooling performance and single copper wires winding of low internal resistance for less current interference. Light efficient energy-saving motor for aircraft UAV RC drones!

Features

  • Service life of 1000 hours
  • Efficiency up to 11.5g/W at 3kg
  • Imported German 7075 aviation aluminum
  • Motor weighs only 255g

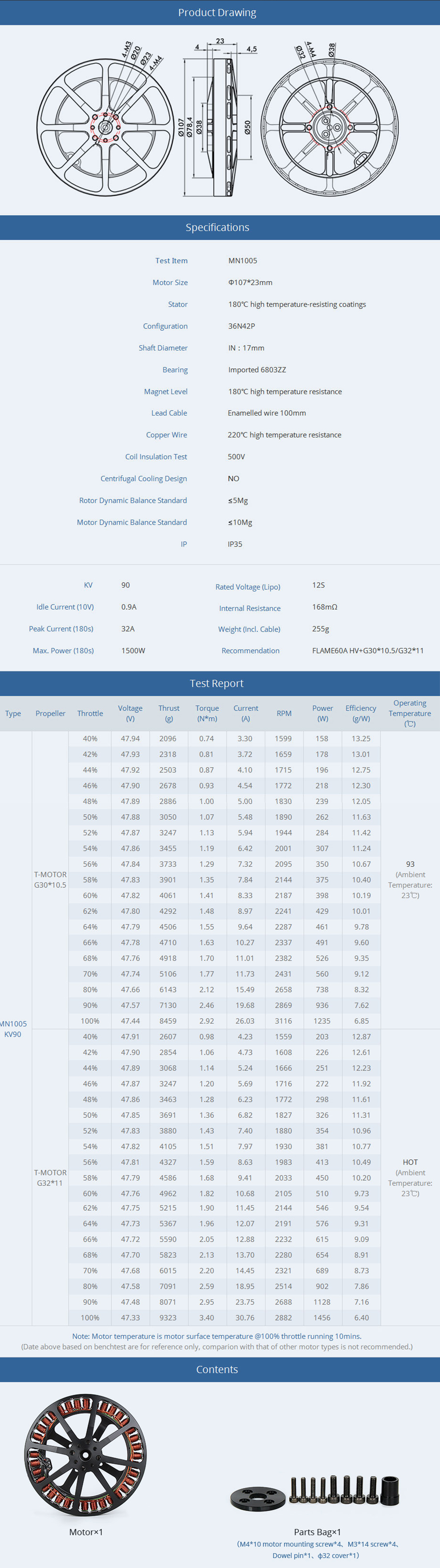

Specifications

  • Motor size: ø107*23mm
  • Stator: 180° high temperature-resisting coating
  • Configuration: 36N42P
  • Shaft Diameter: IN: 17mm
  • Bearing: Imported 6803ZZ
  • Magnet Level: 180°C high-temperature resistance
  • Lead Cable: Enamelled wire 100mm
  • Copper Wire: 220°C high-temperature resistance
  • Coil Insulation Test: 500V
  • Centrifugal Cooling Design: NO
  • Rotor Dynamic Balance Standard: <5mg
  • Motor Dynamic Balance Standard: <10mg
  • IP: IP35

Includes

  • 1 x T-Motor Antigravity MN1005 90kv Motor
  • 4 x M4* Motor Mounting Screw
  • 4 x M3*14 Screw
  • 1 x Dowel Pin
  • 1 x ø32 Cover
